Solar Powered Generator for Home 1500W-3000W 24V

Specifications

Solar Powered Generator for Home   1500W-3000W 24V

Rated Power: 1500W/2000W/3000W, Input: DC24V, Ouput: AC110V/120V/220V/230V/240V, 2*AC Output Socket, 4*DC12V, 4*DC5V USB | Solar Powered Generator Combines Inverter, MPPT Solar Charge Controller, Can Built-in 2*200AH Battery


Solar Powered Generator Feature



1. 3 times peak power, excellent loading capability.
2. Solar powered generator combines inverter/solar controller/battery all in one.
3. Multiple output: 2*AC output socket, 4*DC 12V, 4*USB.
4. Working mode AC prior/ECO mode/Solar prior selectable.
5. AC charging current 0-30A selectable.
6. LVD/HVD/Charging voltage adjutable, suitable for kinds of battery
7. Adding fault code to monitor real-time work situations.
8. Continuous stable pure sine wave output with inbuilt AVR stabilizer.
9. Digital LCD and LED for visualization of operation status of the equipment.
0. Solar power generator inbuilt automatic AC charger and AC mains switcher, stwitch time ≤ 4ms.


Solar Powered Generator Specification



Specification
Model : ESS152P/W202P/W302P/W
CapacityRated power1500W2000W3000W
Peak power(20ms)4500VA6000VA9000VA
InputStardard battery voltage24VDC
AC input voltage range
85VAC~138VAC (110VAC) / 95VAC~148VAC (120VAC) / 170VAC~275VAC (220VAC)/ 180VAC~285VAC (230VAC)
/ 190VAC~295VAC (240VAC)
AC input frequency range45Hz~55Hz(50Hz);55Hz~65Hz(60Hz)
OutputConversion efficiency≥85%(Battery mode); >99%(AC mode)
AC Output voltage
110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2%/ 240VAC±2%(Battery mode);
110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%(AC mode)
AC Output frequency50/60Hz±1%(Battery mode); Tracking Automatically(AC mode)
AC Output waveformPure Sine Wave
THD≤3%(Linear load)
DC Output voltage4*DC 12V; 4*USB(5V)
AC chargerAC charging current0~30A(Depends on model)
AC charging methodThree-stage(constant current, constant voltage, floating charge)

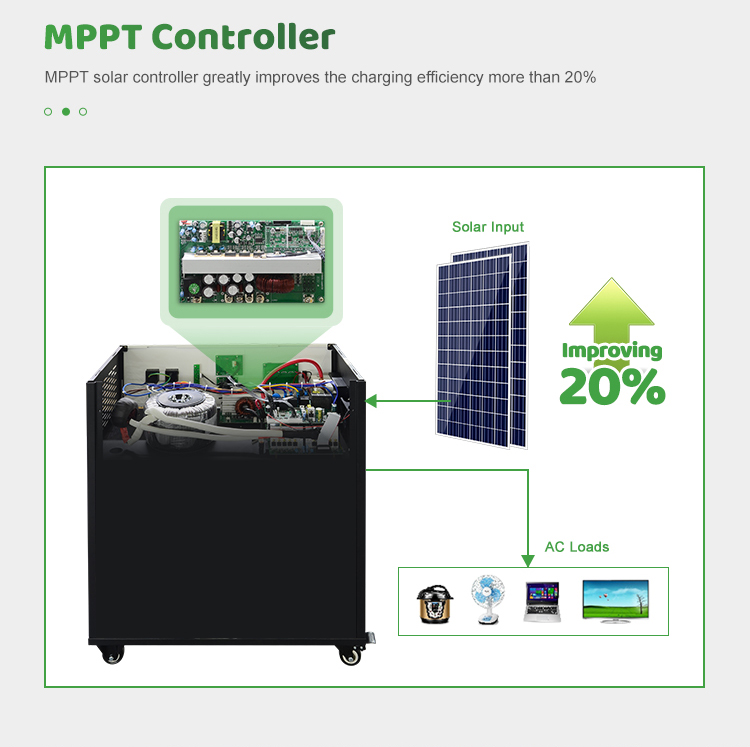

solar charger   (Optional)Charging modePWM/MPPT
Max PV input voltage(Voc)
(At the lowest temperature)
PWM: 50V; MPPT: 150V
PV input voltage rangePWM:30V~44V;   MPPT:   30V~120V
Charge & discharge current60A
Max PV input power1680W
Inbuilt batteryCapacity2*200AH
Battery size(LxWxH)/pcs522*240*218(244)
OtherTransfer time≤4ms
Protectionwith over-voltage, low-voltage, overload, short circuit, high tempreature protections
DisplayLCD & LED
Cooling wayCooling fan in intelligent control
Communication(Optional)RS485/APP(WIFI monitoring or GPRS monitoring)
Working mode
(selectable)
d1AC priority mode
d2ECO mode
d3Solar priority mode
Work
environment
Operating temperature-10℃~40℃
Storage temperature-15℃~60℃
Elevation2000m(More than derating)
Humidity0%~95% ,No condensation
PhysicalDimention L x W x H(mm)560*350*928
Net weight(kg)(without battery)373943
PackingDimention   L x W x H(mm)638*427*1063
Gross weight(kg)(without battery)606266
Quantity/CTN1pcs per wooden case
Note: All specifications are subject to charge without prior notice

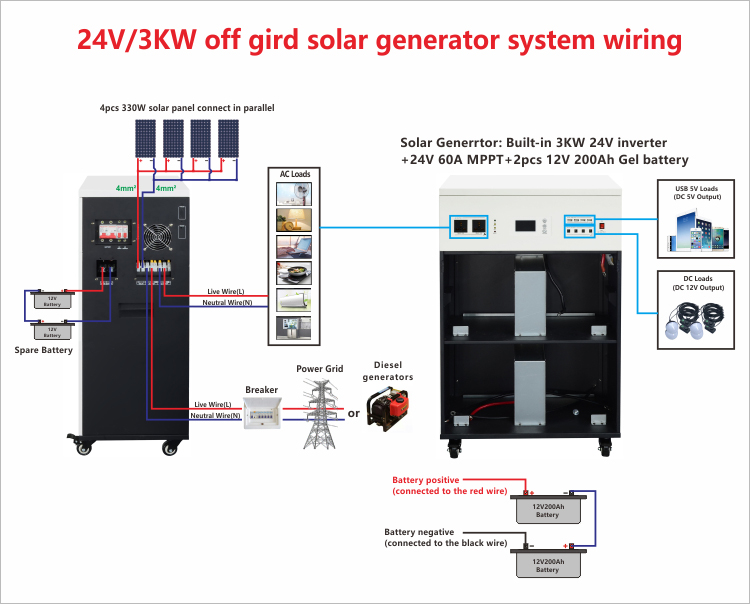

Solar Powered Generator Details
